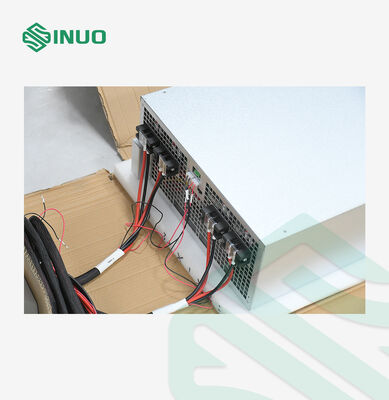

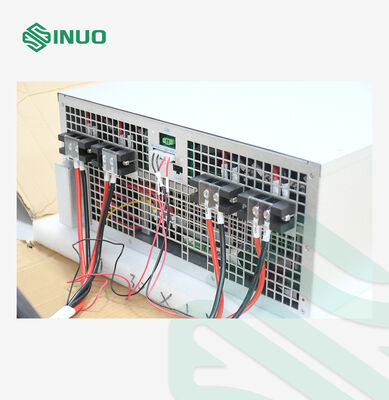

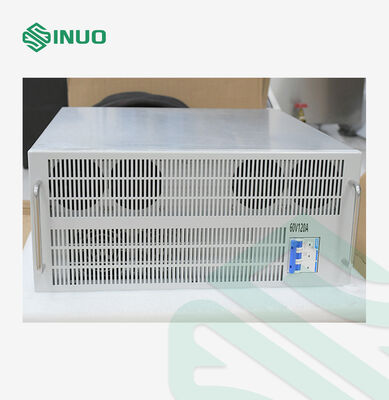

EV Battery Testing Equipment with 60V 120A Capacity Featuring Fully Independent Channels and High Precision Feedback Technology

EV Battery Testing Equipment with 60V 120A Capacity Featuring Fully Independent Channels and High Precision Feedback Technology

Nome da marca:	Sinuo
Número do modelo:	SN552-30V200A
MOQ:	1
preço:	Customized
Condições de pagamento:	T/T
Capacidade de abastecimento:	1 série/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

Calibration Certificate (Cost Additional)

Intervalo de tensão de descarga:

8V~60V

Escala da tensão de carregamento:

0V~60V

Corrente de saída mínima:

±300mA

Corrente de saída máxima:

±120A

Tempo de conversão actual:

≤ 40 ms

Tempo de resposta de arranque actual:

≤20ms

Modo de acção do canal:

Totalmente independente

Número de canais principais:

2 canais

Detalhes da embalagem:

Caixa de madeira compensada

Habilidade da fonte:

1 série/mês

Destacar:

60V 120A EV Battery Testing Equipment

Fully Independent Channels Battery Charge and Discharge Tester

High Precision Feedback Lithium Battery Testing Equipment

Descrição do produto

EV Battery Testing Equipment

Comprehensive safety testing equipment enabling overcharge, overdischarge, and thermal runaway simulations for lithium battery systems.

Equipment Overview

High-precision feedback-type battery pack detection equipment designed for comprehensive performance testing of lithium-ion batteries. This system delivers exceptional power, efficiency, precision, and performance characteristics.

Tests lithium-ion battery capacity, state of charge, overcharge, and over-discharge parameters
Advanced electric energy feedback technology minimizes heat emission and power consumption
Modular architecture including host computer, middle computer, DC/AC and DC/DC modules
Real-time data collection for voltage, current, capacity, and energy metrics
Optional battery temperature data collection capability
Comprehensive database storage with advanced data analysis and reporting functions

Technical Specifications

Performance Parameter	Specification
Number of Main Channels	2 Channels
Channel Action Mode	Fully Independent
Main Channel Working Modes	Charging: CC, CV, CCCV; Discharging: CD, CP, Constant Voltage; Standby, Stop
Test Termination Conditions	Time, Voltage, Current, Capacity
Main Channel Voltage Range	Charging: 0V-60V; Discharge: 8V-60V
Voltage Accuracy	±(0.05%RD+0.05%FS)
Voltage Resolution	0.1mV
Main Channel Current Range	±300mA to ±120A
Current Accuracy	±(0.05%RD+0.05%FS)
Current Resolution	0.1mA
Current Response Time	Start: ≤20ms; Conversion: ≤40ms
Time Resolution	1000ms
Output Power	Single Channel: 7200W Maximum
Power Stability	±0.1%FS
Efficiency	Charging/Discharging: 85% Maximum
Harmonic Distortion	≤3%
Power Factor	≥0.99
Auxiliary Channel Function	Condition-based step termination or switching
Communication Interface	RJ-45 Network for stable, real-time data collection
