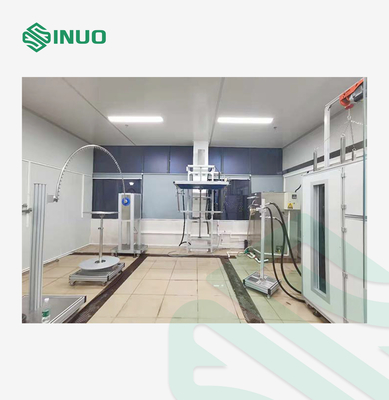

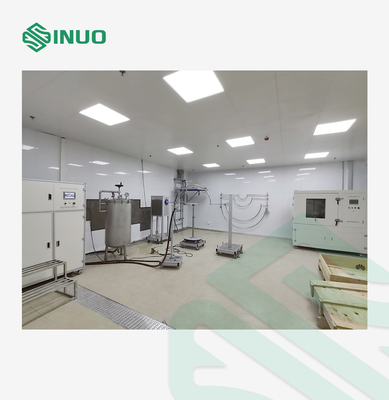

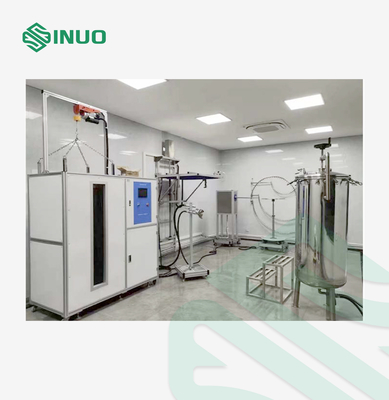

IPX1~8 Waterproof Test System IEC 60529 Waterproof Testing Equipment

IPX1~8 Waterproof Test System IEC 60529 Waterproof Testing Equipment

Nome da marca:	Sinuo
Número do modelo:	SN4418
MOQ:	1
preço:	Customized
Condições de pagamento:	T/T.
Capacidade de abastecimento:	30 conjuntos/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

CHINA

Certificação:

Calibration Certificate (Cost Additional)

Material corporal:

liga de alumínio industrial

Material do tanque:

aço inoxidável

Distância do orifício:

20mm

Abertura de gotejamento:

¢ 0,4 mm

Fluxo de chuva:

1 mm/min, 3 mm/min, parâmetros definidos pelo utilizador (erro: + 0,5 mm/min).

Tempo de teste:

10 min, pode ser ajustado de acordo com a necessidade

Compressor de ar:

Compressor de ar silencioso

Estrutura da máquina:

Montagem na parede

Detalhes da embalagem:

Caso de compensado

Habilidade da fonte:

30 conjuntos/mês

Descrição do produto

IPX1~8 Waterproof Test System IEC 60529 Waterproof Testing Equipment

Complied Standards & Clauses

This IPX1~8 waterproof test system conforms to IEC 60529:2013, etc.

Equipment Overview

This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2.

1. The rise and fall of the drip box is controlled by the motor.

2. Stainless steel fine filter for dirt filtration.

3. Adopts compressed air to blow the needle water, to prevent water reactive substances and atmospheric blocking needle.

4. Stainless steel general medical needle nozzle, easy to buy, not easy to rust.

5. Needle nozzle and needle nozzle seat using taper connection, can be easily replaced without the tool, individual damage to the needle nozzle can be easily replaced quickly.

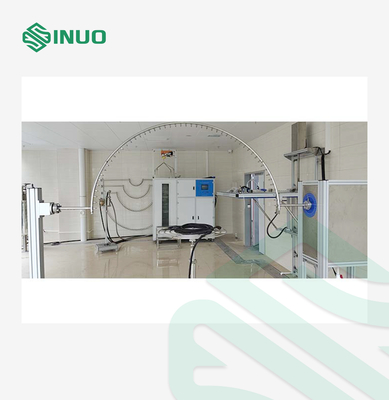

Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4.

The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.

The angle adjustment is accurate. The structure is stable and durable. It cooperates with turntable through which the rotating of 90°can be achieved.

The spray nozzle is designed and manufactured in accordance with IEC60529 IPX3 and IPX4. Some parts of the enclosure cannot be wet by the oscillating tube. Under this circumstance, the handheld spray nozzle is used by manual.

The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.

Technical Parameters

Application	Applies to conduct IPX1, IPX2 testing.
Rain area	1000mmX1000mm
Tank material	Stainless steel
Dripping aperture	￠0.4mm
Hole distance	20mm
Rainfall Flow	1mm/Min, 3mm/Min, user-set parameters (error: + 0.5mm / min).
Water dripping height	200mm (automatically control by the test equipment)
Test time	10Min, can be set according to the need
Draining	Automatically emptying the tank water after the test is completed
Body material	Industrial aluminum alloy
Dimensions (LxDxH)	1100X1200X2800mm
Machine structure	Wall Mount
Air compressor	Silent air compressor

No.	Item	parameters
1	Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
2	The size of the oscillating tube	Standard coming with R200mm, R400mm, R600mm, R800mm, R1000mm R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
3	Needle hole	Φ0.4mm
4	Included angle of two holes	IPX3:120°; IPX4:180°
5	Oscillating tube swing angle	Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° cannot achieved during actual testing, if without turntable, then 360° can be achieved)
6	Raining speed	IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°);
7	Water flow	Can be set according to the size of the pendulum and the number of the pin holes (0.07 L/min per hole)
8	Testing time	0.01S～99 hours 59mins,can be preset
9	Pressure gauge	0~0.25MPa
10	Site requirements	Dedicated IP waterproof test room, the ground should be flat with illumination 10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage. Ground installation
11	The area	According to the oscillating tube chose
